Electric Motor Rewinding Services in Dubai, UAE

Electric motor rewinding for AC and DC motors up to 900KW, with motor repair and overhaul, generator rewinding and dynamic balancing, carried out at our workshop at Al Jadaf Dry Dock, Dubai, since 1995.

Request a rewinding quote Rewind or replace?
Stator with new copper windings after motor rewinding
AC · DC · GeneratorsAl Jadaf Dry Dock

  • 900KW

    AC & DC motors rewound

  • 2.5 t

    Rotors dynamically balanced

  • Class H

    Insulation on every rewind

  • 24–72 h

    Typical turnaround under 50KW

Motor rewinding in Dubai

A motor rewinding company in Dubai since 1995

Motor rewinding replaces the copper windings of a stator or armature that has burned out or failed insulation testing. At Anchor Marine Engineering it is part of a complete motor service: we diagnose the fault, rewind or overhaul the motor, dynamically balance the rotor and test it before it goes back into service.

Anchor Marine Engineering has rewound motors at its workshop at Al Jadaf Dry Dock, Dubai, since 1995. The workshop handles single-phase and three-phase AC motors, DC motors, generators and alternators for marine vessels, industrial plants, water treatment, pumping stations and commercial buildings across the UAE.

When a motor needs more than new windings, the same team handles motor repair and overhaul, generator rewinding and dynamic balancing.

As one of the motor rewinding companies in Dubai with its own workshop, we rewind marine motors, crane motors, pump motors and screw compressor and chiller compressor motors. Our motor rewinding shop at Al Jadaf handles the complete motor winding job: stripping the old coils, winding and insulating new copper coils, varnishing and baking, and testing.

At a glance

Service
Electric motor rewinding
Equipment
AC & DC motors up to 900KW (LV up to 690V and HV), generators, alternators
Insulation
Class H on every rewind
Where
Al Jadaf Dry Dock workshop, Dubai; on-site inspection across the UAE
Industries
Marine, industrial, water & pumping, HVAC, commercial buildings
Turnaround
24–72 h for most motors under 50KW; 3–7 working days for larger motors and alternators
Specialist rewinds
Marine, crane, hoist, winch, slip ring, screw compressor and chiller compressor motors

Know what you need

Our motor services

Rewinding, repair and overhaul, generator rewinding and balancing are different jobs. Each has its own page with the full detail.

  • 01

    Motor rewinding

    Replacing failed or burnt copper windings in the stator or armature with new Class H insulation. The fix for electrical failure.

    Motors we rewind →

  • 02

    Motor repair & overhaul

    Bearings, shaft, end shields, cooling, commutator and frame restored, with rewinding where needed, varnished, balanced and tested.

    Motor repair & overhaul →

  • 03

    Generator rewinding

    Stator, rotor and exciter rewinding for generators and alternators of all types.

    Generator rewinding →

  • 04

    Dynamic balancing

    Rotors, armatures, impellers, fans and shafts balanced up to 2.5 tons in our workshop.

    Dynamic balancing →

Equipment

Motors and generators we rewind

From small pump motors to marine propulsion motors and standby generators, rewound at Al Jadaf Dry Dock.

  • 01

    AC induction motors

    Single-phase and three-phase, LV and HV motors for industrial plants, water treatment, pumping stations and commercial buildings.

  • 02

    DC motors

    Armature rewinding and field coil replacement for cranes, hoists, conveyors, deck winches and electric vehicle drive systems.

  • 03

    Marine propulsion & deck motors

    Propulsion motors, bow thruster motors, deck crane and winch motors, rewound to marine class standards.

    Marine electrical services →

  • 04

    Generators & alternators

    Stator and rotor rewinding for marine generators, industrial alternators and standby power systems, restoring stable voltage output.

    Generator rewinding →

  • 05

    Compressor & chiller motors

    Rewinding and overhauling of chiller compressor motors, refrigeration motors and HVAC system motors.

    Compressor motor rewinding →

  • 06

    Submersible & pump motors

    Full overhaul and rewinding for submersible, centrifugal, multistage and borehole pump motors of all capacities.

    Pump overhaul & repair →

Stator during coil rewinding in the workshop

Compressor & chiller motors

Screw compressor and chiller motor rewinding

Chiller and refrigeration compressors are driven by electric motors that run long hours in UAE heat, and a burnt winding stops the whole cooling system. We rewind and overhaul chiller compressor motors, refrigeration motors and HVAC system motors in our workshop at Al Jadaf Dry Dock, with the same insulation, testing and balancing as every other rewind.

  • Chiller compressor motors
  • Refrigeration compressor motors
  • HVAC system motors
  • Class H insulation on every rewind
  • Insulation resistance, surge & load testing
  • Rotor dynamically balanced

Request a compressor motor quote

Crane, hoist & winch motors

Crane motor rewinding

Crane motor rewinding for hoist and travel motors on EOT, overhead and gantry cranes in plants and warehouses, and on port and marine cranes. The same team rewinds hoist and winch motors, including deck winches and windlasses, slip ring (wound rotor) motors and crane brake motors.

  • 01

    Crane hoist & travel motors

    Hoist, cross-travel and long-travel motors for EOT, overhead and gantry cranes, and motors for port and marine cranes, rewound with Class H insulation.

  • 02

    Hoist & winch motors

    Electric hoist motors, and winch and windlass motors from ships’ decks, rewound and tested before they go back on board.

  • 03

    Slip ring motors

    Slip ring (wound rotor) motors, common on cranes: stator and rotor rewound, and the slip rings turned true.

  • 04

    Crane brake motors

    Brake motors rewound, with the brake checked and repaired so the motor stops and holds the load as it should.

Every crane motor winding job gets the same Class H insulation, varnish and bake and testing as our other rewinds, and the rotor is dynamically balanced before the motor is returned.

Our process

Inspect. Strip. Rewind. Test. Deliver.

  1. 01

    Inspect

    Inspection, fault diagnosis and insulation resistance testing. You receive a written assessment and fixed quote before work starts.

  2. 02

    Strip

    Removal of the failed windings and preparation of the stator core or armature.

  3. 03

    Rewind

    New copper windings with Class H insulation, varnished and baked.

  4. 04

    Test & balance

    Insulation resistance, surge and load testing, with every rewound rotor dynamically balanced.

  5. 05

    Deliver

    Back in service: most motors under 50KW within 24–72 hours.

Rewinding vs replacing

Motor rewinding or replacement? How to decide

Rewinding an electric motor is typically 30–50% less expensive than buying a new replacement, especially for motors above 5KW. It avoids waiting weeks for a motor to be imported, keeps the original equipment specification, and can extend motor life by upgrading insulation from Class F to Class H.

In Dubai’s climate, with temperatures regularly above 45°C and coastal salt air, insulation breakdown is the most common cause of motor failure. A rewind with Class H insulation addresses it directly.

When replacement is the better option: if the stator core is damaged (burnt laminations), the frame is cracked, or the motor is very small (under 1KW).
Marine and specialist motors: where a direct replacement would have to be imported, rewinding or overhauling is usually the fastest route back to full operation.
Free written assessment: for every motor we inspect, we compare the rewind cost with the replacement cost so you can decide.

From the workshop

Motor rewinding at Al Jadaf Dry Dock

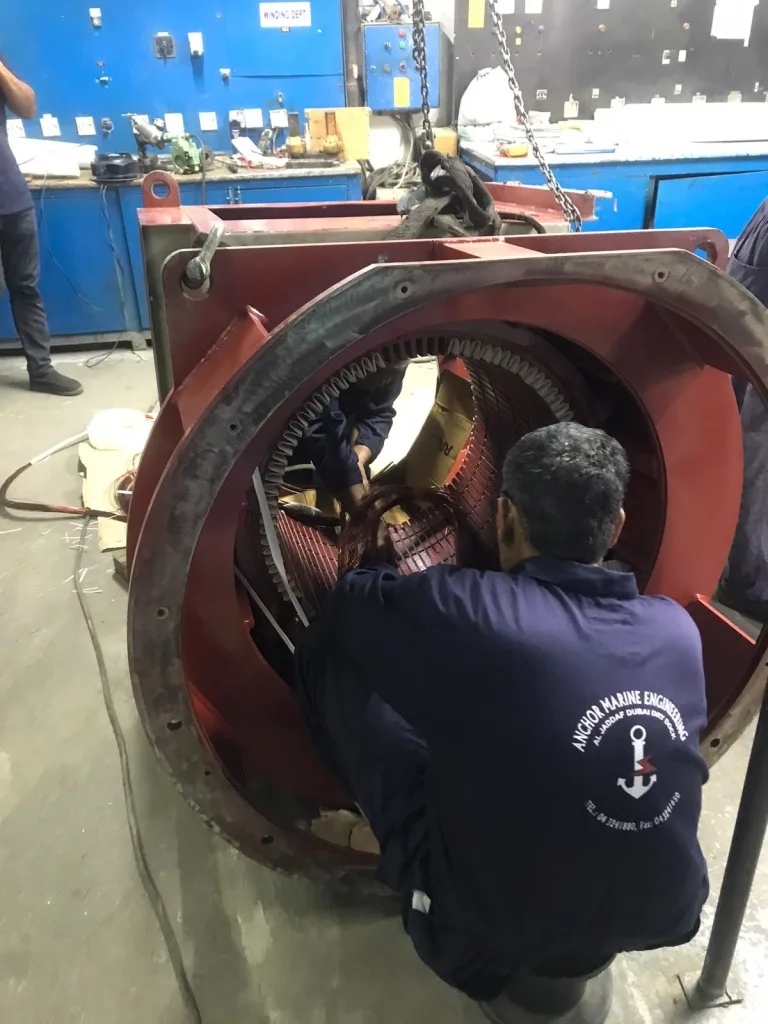

Anchor Marine Engineering technician working inside a large motor stator during rewinding
Large stator rewinding
Stator during coil rewinding
Stator rewinding

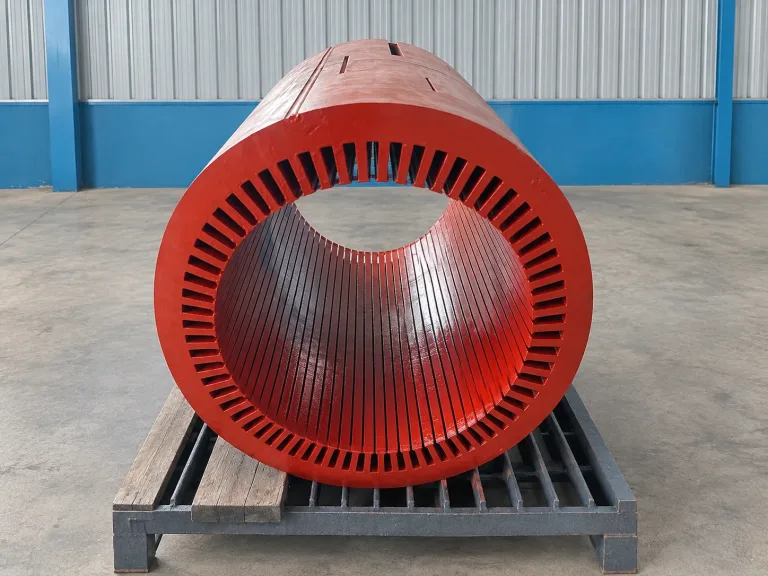

Stator core prepared for rewinding
Stator core
Stator with new red-varnished windings
Varnished windings
Stator windings ready for testing
Before testing

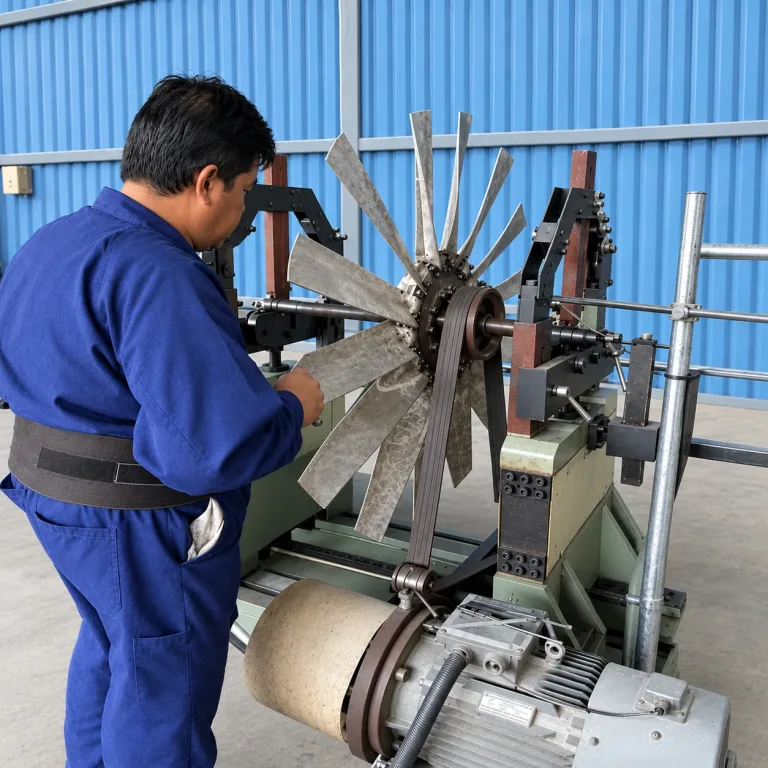

Technician balancing a fan rotor on the dynamic balancing machine
Rotor balancing

At a glance

Motor rewinding in Dubai: sizes, insulation and turnaround

The key facts about our electric motor rewinding service.

ItemDetail
Motor sizesAC and DC motors up to 900KW
VoltageLV up to 690V and HV
InsulationClass H on every rewind
Specialist rewindsMarine motor rewinding, crane motor rewinding, hoist and winch motors, slip ring motors, pump motors, screw compressor and chiller compressor motors
Turnaround24–72 hours for most motors under 50KW; 3–7 working days for larger motors and alternators
WhereOur motor rewinding shop at Al Jadaf Dry Dock, Dubai; on-site inspection across the UAE
In businessSince 1995

FAQ

Motor rewinding questions

Not covered here? Call +971 56 278 5002 or email info@anchormarineeng.ae.

What is the difference between motor rewinding and motor overhauling?

Motor rewinding addresses electrical failure: replacing the copper windings inside the stator or armature when they have burned out or failed insulation testing. Motor overhauling is broader. It includes rewinding where needed plus mechanical restoration of the bearings, shaft, end shields, cooling system, commutator (on DC motors) and frame, returning the motor to as-new condition electrically and mechanically. We offer both for all motor types up to 900KW.

How much does motor rewinding cost in Dubai?

Cost depends on the motor size (KW), voltage (LV or HV), motor type (AC or DC) and the extent of the damage. We inspect the motor free of charge and give you a fixed quote before starting any work, including a written comparison of rewind and replacement cost.

How long does motor rewinding take?

Most small to medium motors (under 50KW) are rewound and returned within 24–72 hours. Larger motors and generator alternators may take 3–7 working days, depending on winding complexity.

What is the maximum motor size you can rewind?

Our workshop at Al Jadaf Dry Dock rewinds AC and DC motors up to 900KW and dynamically balances rotors up to 2.5 tons. We handle LV motors (up to 690V) and HV motors as required.

What are the signs that an electric motor needs rewinding?

Common symptoms are a burning smell or visible burn marks on the windings, the motor repeatedly tripping its breaker, excessive heat during operation, reduced power output or slow start-up, visible insulation damage or cracking, and a failed insulation resistance test.

Do you also rewind generators?

Yes. We rewind all types of generators and alternators: stator, rotor and exciter windings, with Class H insulation and the rotor dynamically balanced before it goes back.

Do you rewind screw compressor and chiller compressor motors?

Yes. We rewind and overhaul chiller compressor motors, refrigeration compressor motors and HVAC system motors at our workshop at Al Jadaf Dry Dock, Dubai, with Class H insulation, insulation resistance, surge and load testing, and the rotor dynamically balanced. Send the motor nameplate and the compressor details for a quote.

Where is your motor rewinding workshop?

At Shed DY-03, Al Jadaf Dry Dock, Dubai, where Anchor Marine Engineering has rewound motors since 1995, for clients across the UAE.

Do you offer on-site motor repair in Dubai?

For motors that cannot be transported, our team can visit your facility across Dubai and the UAE for on-site inspection, fault diagnosis and minor repairs. Full rewinding and dynamic balancing are done in our Al Jadaf Dry Dock workshop.

Do you provide a warranty on motor rewinding?

Yes. Anchor Marine Engineering provides a warranty on motor rewinding work. Contact us for the warranty terms that apply to your job.

What is motor rewinding?

Motor rewinding is the replacement of the copper windings of a motor’s stator or armature after they burn out or fail insulation testing. The old coils are stripped, new coils are wound and insulated, the winding is varnished and baked, and the motor is tested before it goes back into service.

Do you rewind crane motors?

Yes. We rewind crane hoist and travel motors for EOT, overhead and gantry cranes in plants and warehouses, and for port and marine cranes, in our Al Jadaf workshop, with the same Class H insulation and testing as every other rewind. On crane brake motors we check and repair the brake as well.

Do you rewind slip ring motors?

Yes. We rewind slip ring (wound rotor) motors, including the stator and the rotor, and turn the slip rings true. They are common on cranes and hoists.

Do you rewind winch and windlass motors?

Yes. We rewind electric winch and windlass motors from ships’ decks, as well as electric hoist motors, and test them before they go back into service.

Request a quote

Need a motor rewound?

Send us the motor details and we will come back with an assessment and a fixed quote, or call us directly.

What to send us

  • Motor nameplate photo (KW, voltage, RPM, frame)
  • AC or DC, and LV or HV
  • Symptoms: tripping, heat, smell, vibration
  • Where the motor is: workshop drop-off or on-site
  • Vessel or site name, if relevant
  • When you need it back in service
Call +971 56 278 5002WhatsApp usEmail drawings
