Inline & Circulation Heaters
Inline (circulation) heaters manufactured at Al Jadaf, Dubai, to heat oil and water as it flows through a pipeline and keep a consistent fluid temperature in industrial systems. Built to your pipe connections, voltage and wattage, from a sample, a drawing or a specification.
In flow
Heats liquid as it moves
Oil · water
Pipeline heating
Steady
Consistent fluid temperature
Tested
Before delivery

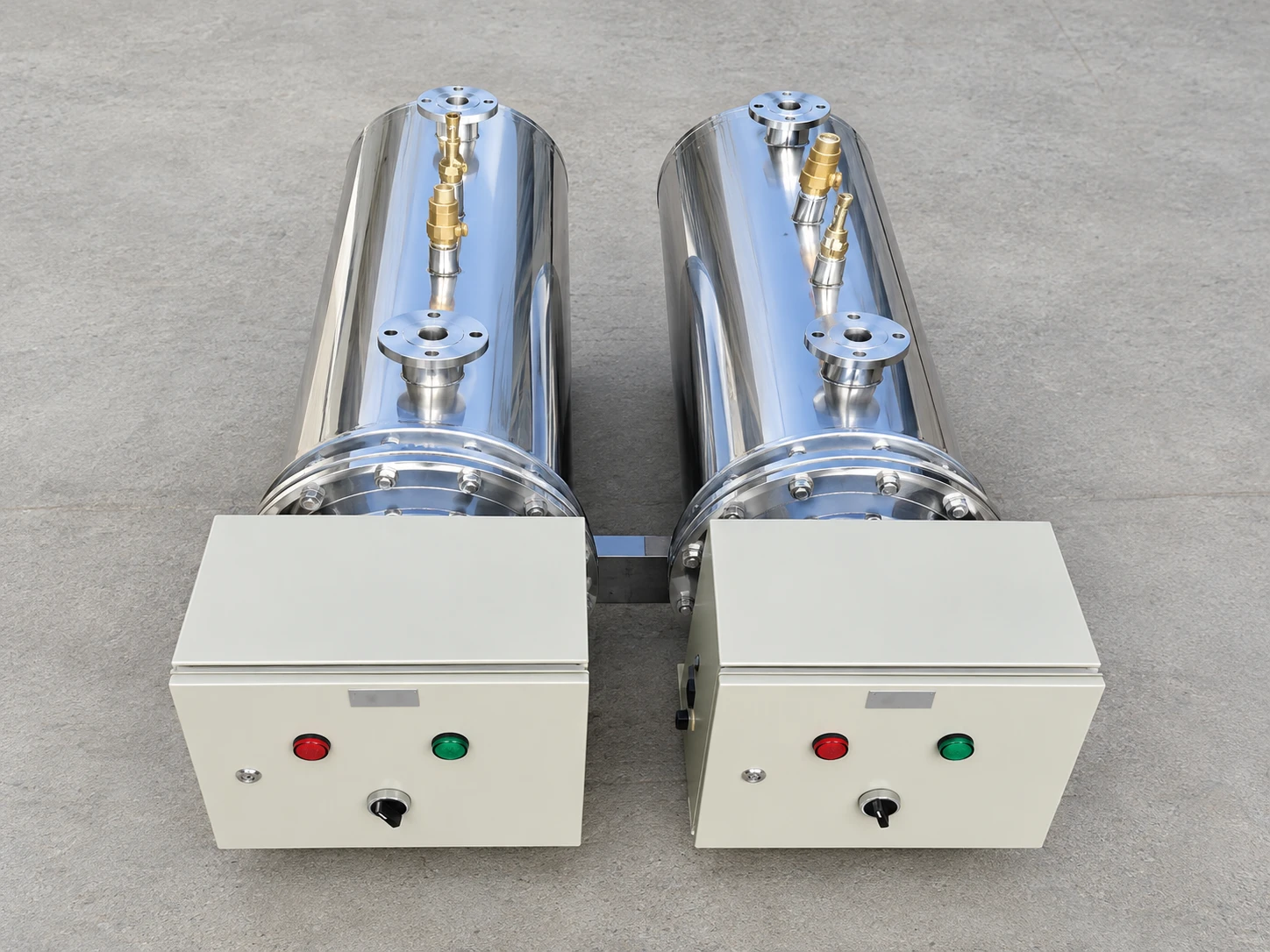

Inline and circulation heaters made in Dubai
Heating liquid as it flows
An inline heater is mounted in a pipeline so the liquid is heated as it flows through, rather than while it sits in a tank. It is used where a fluid has to arrive at a process or a machine at a steady temperature.
Inline heaters are also called circulation heaters. Both names describe the same design: heating elements inside their own housing, connected into the pipework so the liquid circulates past the elements and leaves at a higher temperature.
Anchor Marine Engineering manufactures inline and circulation heaters at its Al Jadaf workshop for heating oils and water during flow, holding a consistent fluid temperature in industrial systems. Each heater is built to your pipe connections, voltage and wattage, with a terminal box, and tested before delivery.

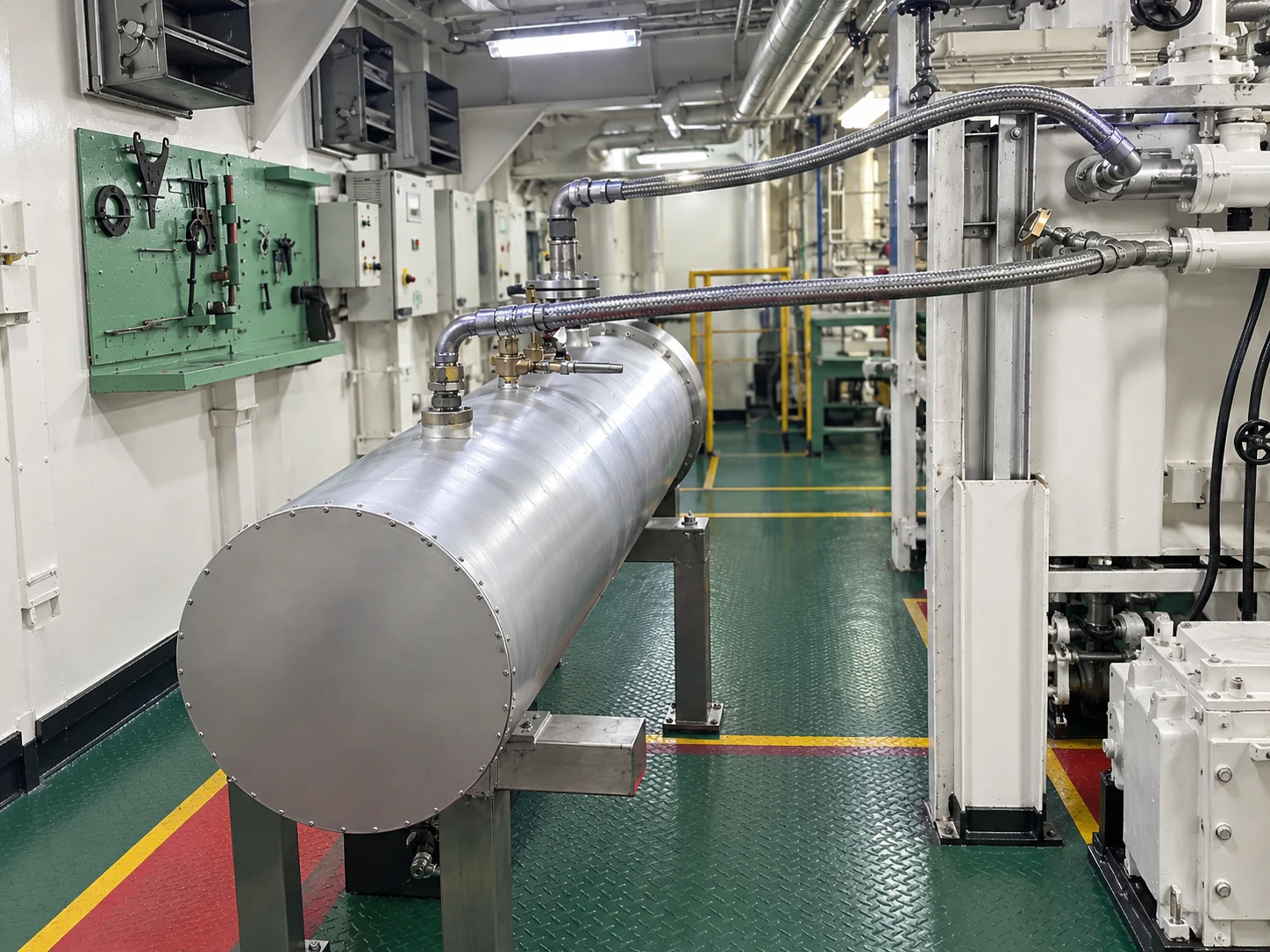

They are also called pipeline heaters, electric pipeline heaters or circulating heaters, and are used as oil pipeline heaters, industrial pipeline heaters and inline water heaters for industrial systems. For ship fuel oil, lube oil and jacket water systems, see marine oil heaters.
At a glance
- Product
- Inline (circulation) heaters
- Also called
- Circulation heaters, pipeline heaters
- Mounting
- In the pipeline, with pipe connections
- Heats
- Oil and water in flow
- Built to
- Your pipe connections, voltage and wattage
- Where
- Manufactured at Al Jadaf, Dubai; supplied across the UAE
- Experience
- In business at Al Jadaf, Dubai, since 1995
Design
How an inline circulation heater works
Heating elements sit inside a housing that connects into the pipeline. Liquid enters the housing, circulates over the elements and leaves heated, and the heat input is set so the outlet stays at a consistent temperature.
- Elements inside a pipeline housing
- Liquid circulates past the elements
- Holds a consistent outlet temperature
- Terminal box for the electrical connection
Applications
Where inline and circulation heaters are used
Anywhere a fluid must stay at temperature while it moves.
- 01
Oil lines
Heating oil during flow so it reaches equipment at the right temperature.
- 02
Water lines
Heating water during flow in industrial systems.
- 03
Circulating systems
Reheating liquid that is pumped around a loop to hold its temperature.
- 04
Temperature control
Paired with a temperature control panel built in the same workshop.
Built to order
What we need to build your inline heater
There is no fixed catalogue size. Each heater is made to the specification of the equipment it is for, or matched to a sample of the old one.
| Detail | Why it matters |
|---|---|
| Voltage & wattage | Sets the heat input to the flowing liquid |
| Pipe connections | Size and type to match your pipeline |
| Liquid heated | Oil or water |
| Flow & temperature | The flow rate and the outlet temperature you need |
| Housing material | Chosen to suit the liquid; matched to your specification |
| Controls | Thermostat or temperature control panel, if required |
How to order
From your pipeline to a tested heater
- 01
Send your requirement
The old heater as a sample, a drawing, or the pipeline and heating requirement.
- 02
Confirm the design
Voltage, wattage, pipe connections, housing and controls agreed with you.
- 03
Quotation
Quoted per order, depending on the specification and quantity.
- 04
Manufacture
Made at our Al Jadaf workshop, from a single unit to bulk supply.
- 05
Test & deliver
Every element is tested before delivery.
FAQ
Inline and circulation heater questions
Not covered here? Call +971 56 278 5002 or email info@anchormarineeng.ae.
What is an inline heater?
It is a heater mounted in a pipeline that heats the liquid as it flows through, so the fluid reaches its destination at a consistent temperature.
Is a circulation heater the same as an inline heater?
Yes. Circulation heater and inline heater are two names for the same design: heating elements in a housing connected into the pipework, so the liquid circulates past the elements and is heated in flow. We manufacture them to your pipe connections, voltage and wattage.
What liquids do your inline heaters heat?
We manufacture inline and circulation heaters for heating oils and water during flow in industrial systems.
What is the difference between an inline heater and an immersion heater?
An immersion heater heats liquid standing in a tank. An inline or circulation heater sits in the pipeline and heats the liquid while it moves.
What information do you need for an inline heater?
The liquid, the flow rate and required outlet temperature, the pipe connections, the voltage and wattage, and any control requirement.
Related services
Work that often goes with this service
Other liquid heaters we manufacture, and the controls that go with them.
- 01
Screw-Plug Immersion Heaters
Compact threaded heaters for water heaters, pipelines and small tanks. - 02
Flange Immersion Heaters
Flange-mounted elements for large tanks, including ceramic removable flange heaters. - 03
Spiral Immersion Heaters
Coiled elements for fast, even heating in tanks and vessels. - 04

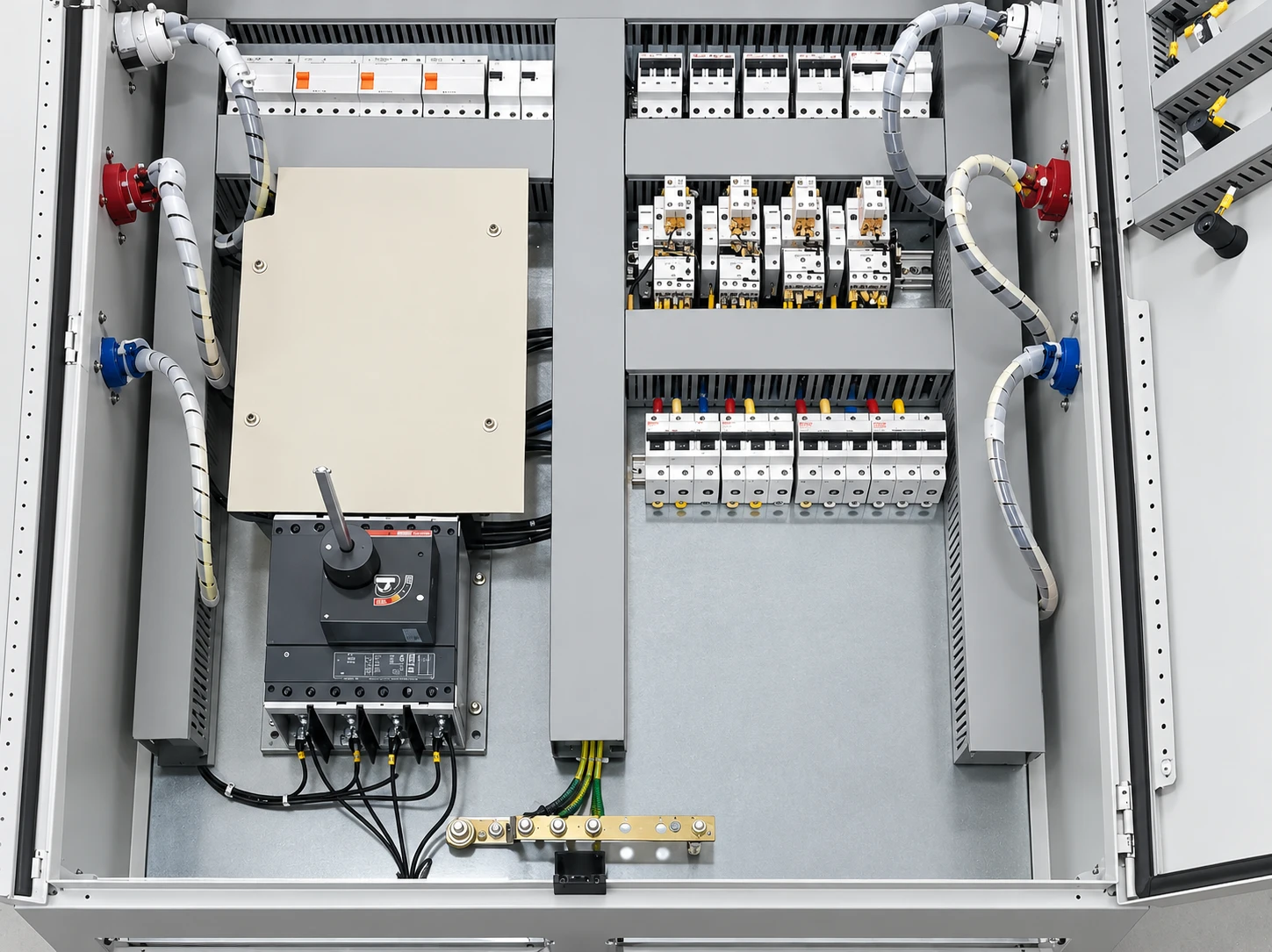

Switchgear & Temperature Control Panels
Temperature control units with thermostats and digital displays. - All marine & industrial services
Request a quote
Need an inline or circulation heater made?
Send the old heater, a drawing or the pipeline details. We will confirm the design and prepare a quotation.
What to send us
- Sample, drawing or photo of the old heater
- Voltage and wattage
- Pipe size and connections
- Liquid, flow rate and outlet temperature
- Control requirement
- Quantity and required date
