Flange Immersion Heaters

Flange immersion heaters manufactured at Al Jadaf, Dubai, for heating large volumes of water, oil and chemical solutions in tanks and vessels, including ceramic removable flange heaters. Built to your voltage, wattage and flange, from a sample, a drawing or a specification.

Request a flange heater quote What to specify

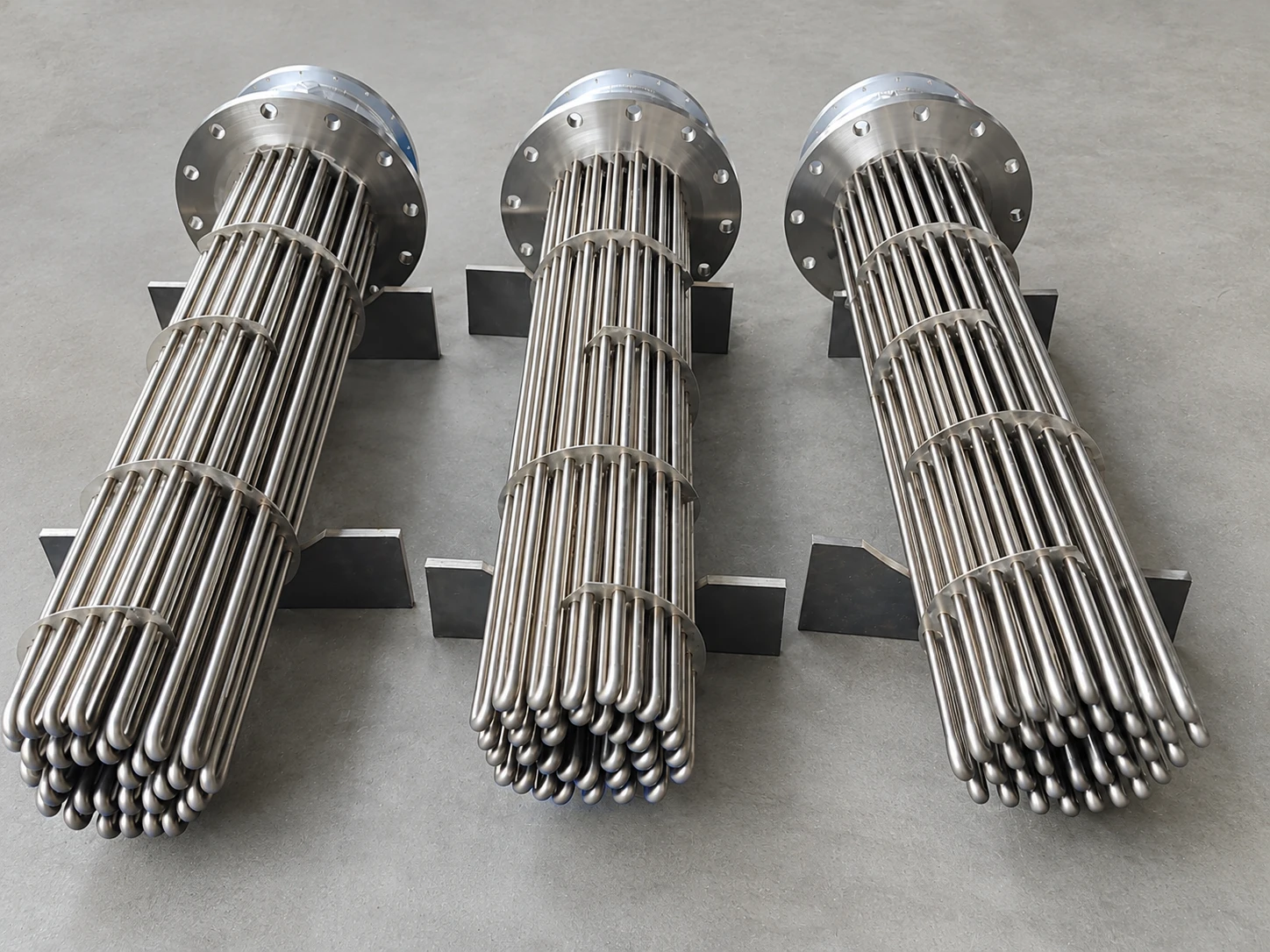

Three flange immersion heater bundles manufactured in the AME workshop
Flange-mounted · Tank heatingMade in Dubai

  • Flange

    Bolted tank mounting

  • Liquids

    Water, oil & chemicals

  • Ceramic

    Removable flange option

  • Tested

    Before delivery

Flange immersion heaters made in Dubai

Heaters for large tanks and vessels

A flange immersion heater is a group of tubular heating elements fixed to a flange, which bolts to a matching flange on the tank so the elements sit directly in the liquid. The bolted mounting holds a large heater securely and lets a lot of heat go straight into the water, oil or solution.

Anchor Marine Engineering manufactures flange immersion heaters at its Al Jadaf workshop for water, oil and chemical heating in industrial settings, and marine heating elements for fuel oil systems and HFO tanks. We also make ceramic removable flange heaters, with ceramic insulation and a removable flange, for chemical, fluid and water-based applications.

Every heater is built to your voltage, wattage, flange and element length, from one replacement to bulk supply, and tested before delivery.

They are also called flanged immersion heaters or flange type immersion heaters: electric flanged immersion heaters for tanks, and flange water heater elements for calorifiers and hot water storage.

At a glance

Product
Flange immersion heaters (tubular elements on a flange)
Variants
Standard flange; ceramic removable flange
Heats
Water, oil, fuel and chemical solutions
Built to
Your voltage, wattage, flange and immersed length
Where
Manufactured at Al Jadaf, Dubai; supplied across the UAE
Experience
In business at Al Jadaf, Dubai, since 1995

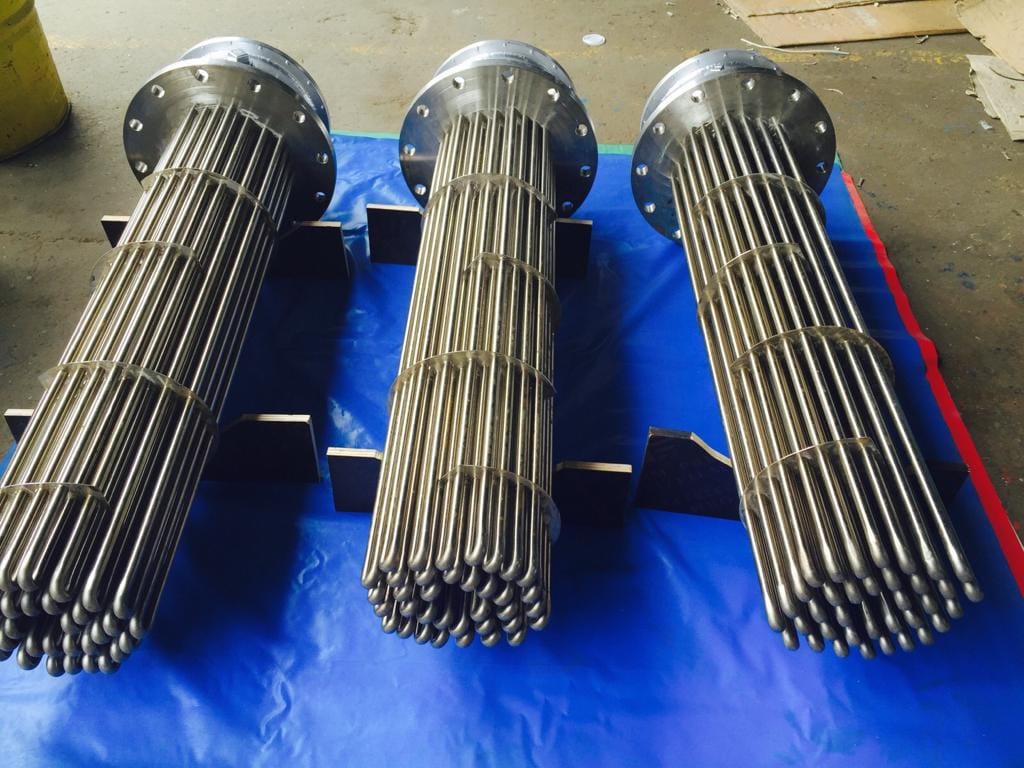

Flange immersion heating elements on the workshop floor

Design

How a flange immersion heater is built

Several tubular elements are bent and fixed to a flange plate, with the terminals on the outside of the tank. The flange size, number of elements and immersed length are set by the tank and the heat it needs.

  • Tubular elements fixed to a flange plate
  • Bolted to a matching tank flange
  • Terminals outside the tank
  • Element count and length set by the tank
Ceramic removable flange heaters. A variant with ceramic insulation and a removable flange, for efficient heating in chemical, fluid and water-based applications.

Applications

Where flange immersion heaters are used

Wherever a large volume of liquid has to be heated in a tank.

  • 01

    Industrial tanks

    Water, oil and chemical heating in process and storage tanks.

  • 02

    Fuel oil & HFO tanks

    Marine heating elements that keep fuel oil and heavy fuel oil workable on board.

    Marine oil heaters →

  • 03

    Boilers & calorifiers

    Water heater elements for boilers and calorifiers in hotels and buildings.

    Hot water calorifiers →

  • 04

    Chemical solutions

    Ceramic removable flange heaters for chemical and water-based applications.

Built to order

What we need to build your flange heater

There is no fixed catalogue size. Each heater is made to the specification of the equipment it is for, or matched to a sample of the old one.

DetailWhy it matters
Voltage & wattageSets the electrical design and heating rate
FlangeSize and drilling to match your tank flange, or your sample
Immersed lengthHow far the elements reach into the tank
Number of elementsSet by the wattage and the space in the tank
Sheath materialChosen to suit the liquid; matched to your sample or specification
Liquid heatedWater, oil, fuel or chemical solution

How to order

From your tank to a tested flange heater

  1. 01

    Send your requirement

    The old heater as a sample, a drawing, or the tank flange and heating requirement.

  2. 02

    Confirm the design

    Voltage, wattage, flange, element count, immersed length and sheath material agreed with you.

  3. 03

    Quotation

    Quoted per order, depending on the specification and quantity.

  4. 04

    Manufacture

    Made at our Al Jadaf workshop, from a single unit to bulk supply.

  5. 05

    Test & deliver

    Every element is tested before delivery.

FAQ

Flange immersion heater questions

Not covered here? Call +971 56 278 5002 or email info@anchormarineeng.ae.

What is a flange immersion heater?

It is a set of tubular heating elements fixed to a flange that bolts onto a matching flange on a tank, so the elements heat the liquid directly. It is used where a large volume of water, oil or chemical solution has to be heated.

Can you make a flange heater to match our old one?

Yes. Send the old heater as a sample, or its drawing or specifications, and we will manufacture a matching flange immersion heater.

What is a ceramic removable flange heater?

It is a flange immersion heater with ceramic insulation and a removable flange. We manufacture them for efficient heating in chemical, fluid and water-based applications.

Do you make flange heaters for fuel oil and HFO tanks?

Yes. We manufacture marine heating elements for fuel oil systems and HFO tanks.

Which details decide the design of a flange heater?

The voltage and wattage, the flange size and drilling, the immersed length, the number of elements, the sheath material and the liquid being heated.

Request a quote

Need a flange immersion heater made?

Send the old heater, a drawing or the tank details. We will confirm the design and prepare a quotation.

What to send us

  • Sample, drawing or photo of the old heater
  • Voltage and wattage
  • Flange size and drilling
  • Immersed length and number of elements
  • Liquid heated
  • Quantity and required date
