Synchronization Panels
Generator synchronization, AMF & ATS panels
Synchronization panels that run two or more generators in parallel, plus AMF panels that start the generator when the mains fails and ATS panels that switch the load between supplies. Built in our workshop at Al Jadaf Dry Dock, Dubai, for buildings, plants and vessels across the UAE.
Sync · AMF · ATS
Generator panels built in-house
Land & marine
Plants, buildings & vessels
Class
Marine panels to class standards
Tested
In the workshop & on site
Synchronization panel manufacturer in Dubai
Synchronization and control panels for generator sets
Anchor Marine Engineering builds generator synchronization panels (also called synchronizing panels, sync panels or DG synchronizing panels), AMF panels, ATS panels and generator control panels in-house in Dubai, for standby and prime power in buildings and plants and for generator sets on board ships. Every panel is designed around your generators and loads, wired and labelled circuit by circuit, and tested before it leaves the workshop.
The same team repairs, modifies, retrofits and refurbishes existing generator panels, and installs and commissions new ones on site or on board.
Because we also rewind generators and overhaul marine engines and generators, the generator set and its control panel can be handled by one team.
Each synchronization panel for generator sets is built to order, and as AMF and ATS panel suppliers in the UAE we deliver and commission panels across the country.
At a glance
- Service
- Synchronization and generator control panel manufacturing
- Panels
- Synchronization, AMF, ATS and generator control panels
- Used for
- Standby and prime power in buildings and plants; parallel generators on vessels
- Work
- New build, repair, modification, retrofit, refurbishment
- Testing
- Insulation resistance, loop checks, thermal simulation, live commissioning
- Part of
- Electrical & Control Panels
- Experience
- In business at Al Jadaf, Dubai, since 1995
Panel types
Synchronization and generator panels we build
Built to your specification for single generators, parallel generator sets and mains changeover.
- 01
Synchronization panels
Bring two or more generators into phase and run them in parallel, sharing the load, with manual or automatic synchronizing to your specification.
- 02
AMF panels
Auto mains failure panels that start the generator when the mains fails, transfer the load and return it when power is restored.
- 03
ATS panels
Automatic transfer switch panels that switch the load between mains and generator, or between two supplies.
- 04
Generator control panels
Control, metering and alarm panels for individual generator sets.
Which panel do I need?
Synchronization, AMF or ATS panel
The right panel depends on how many generators you run and what should happen when the mains fails.
| Panel | What it does | Typical use |
|---|---|---|
| Synchronization panel | Matches voltage, frequency and phase so two or more generators run in parallel and share the load | Sites with several generators; ship power plants |
| AMF panel | Starts the generator on mains failure, transfers the load, and returns it when the mains is back | Standby power for buildings, hotels and plants |
| ATS panel | Switches the load between two supplies | Changeover between mains and generator, or between two generators |
| Generator control panel | Controls, meters and protects a single generator set | Single standby or prime power generators |
Marine
Synchronization panels for ships
Most vessels run two or more generators in parallel, and the synchronization panel brings each set onto the main busbar. We build marine synchronization panels to marine class standards, as part of a new main switchboard or as a separate panel, and repair and retrofit existing ones.
- Built to marine class standards
- Part of a main switchboard or separate
- Retrofit of existing panels
- Installation and commissioning on board
How we work
From requirements to commissioning
The standard steps for a new generator panel. For repairs and retrofits we start with an inspection of the existing panel.
- 01
Requirements
Generators and ratings, mains supply, loads and the functions you need.
- 02
Design & quote
Panel layout and control scheme confirmed, with a written quote.
- 03
Build & wiring
Breakers, controllers, meters and relays fitted, wired and labelled.
- 04
Workshop testing
Insulation resistance testing, loop checks and thermal simulation.
- 05
Install & commission
Installed on site or on board and live commissioned with the generators.
- 06
Support
Repair, modification and retrofit when the system changes.
From the workshop

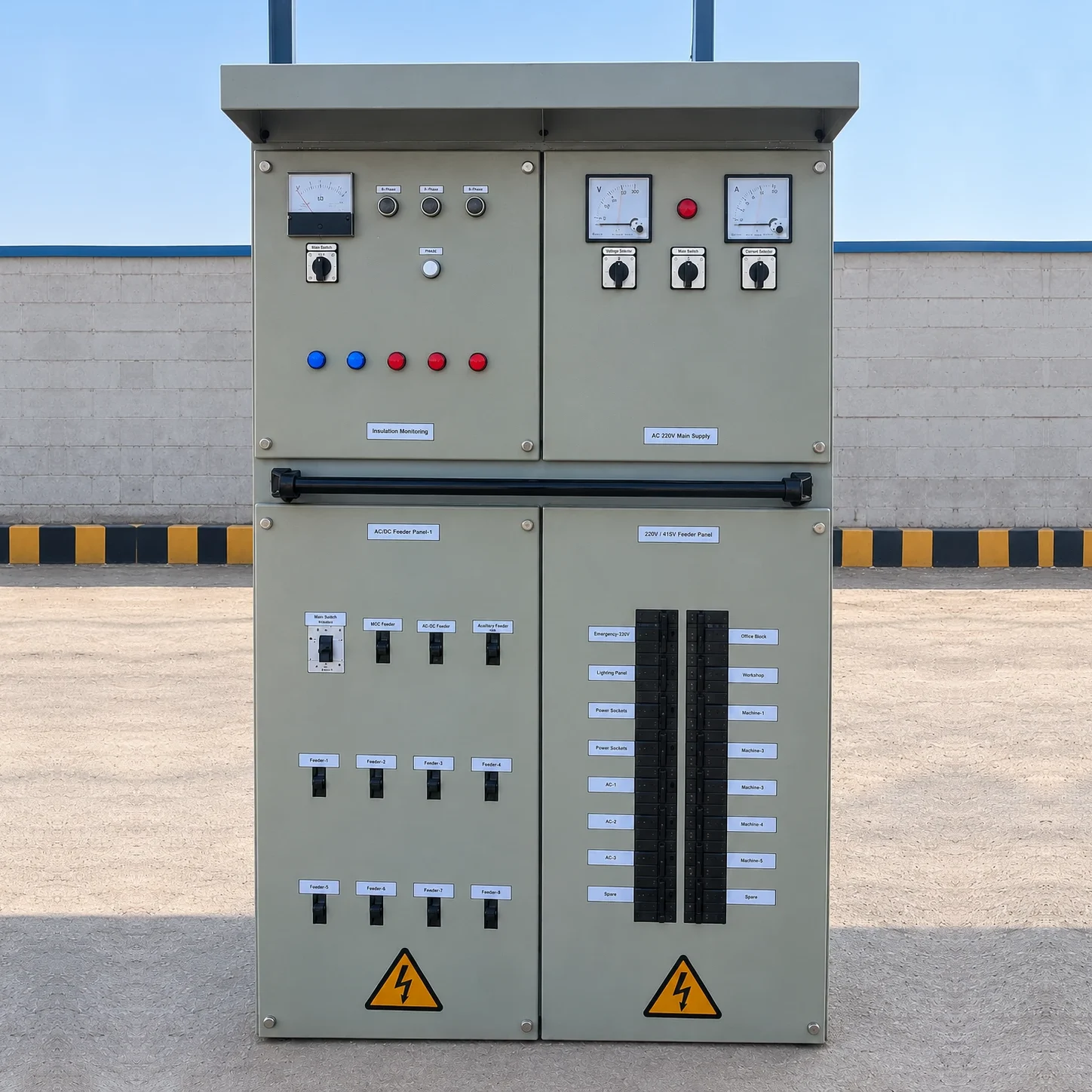

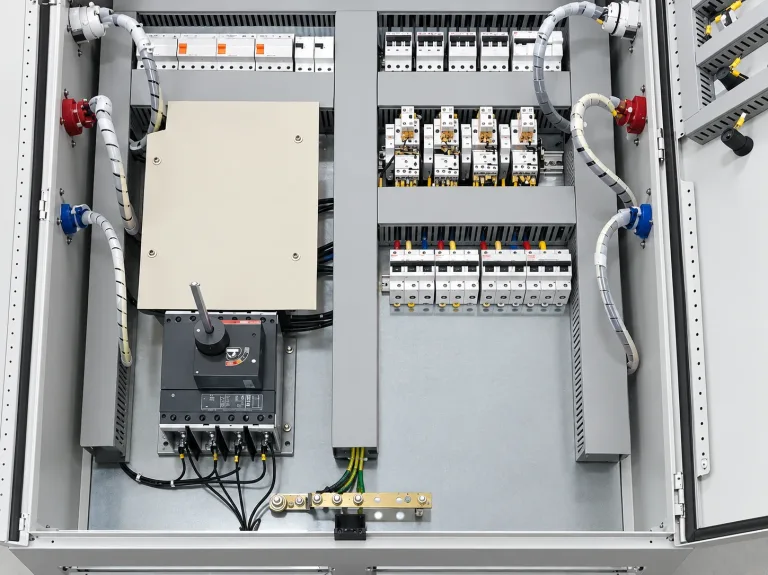

Panels built at Al Jadaf
FAQ
Generator panel questions
Not covered here? Call +971 56 278 5002 or email info@anchormarineeng.ae.
What is a generator synchronization panel?
A synchronization panel (also called a synchronizing panel) brings two or more generators into step, matching their voltage, frequency and phase, so they can be connected to the same busbar and run in parallel, sharing the load between them.
What is the difference between an AMF panel and an ATS panel?
An AMF (auto mains failure) panel watches the mains supply, starts the generator when the mains fails, transfers the load to it and returns the load to the mains when power is restored. An ATS (automatic transfer switch) panel switches the load between two supplies, such as mains and generator or two generators.
Do you build synchronization panels for ships?
Yes. We build marine synchronization panels for running ship generators in parallel, either as part of a new main switchboard or as a separate panel, built to marine class standards.
Can you build a generator panel to our specification?
Yes. Send the number of generators and their ratings, the mains supply details, the loads and the functions you need, and we design and build the panel to your specification and drawings.
Can you repair or upgrade an existing generator panel?
Yes. We repair, modify, retrofit and refurbish existing synchronizing, AMF, ATS and generator control panels, from replacing outdated components to adding functions.
How are the panels tested?
Insulation resistance testing, loop checks and thermal simulation in our workshop, then live commissioning with the generators once the panel is installed.
Do you also service the generators?
Yes. We rewind generators and alternators of all types and overhaul marine diesel engines and generators, so the generator set and its panel can be handled by one team.
What do you need to quote a generator panel?
The number of generators and their ratings (kVA, voltage, frequency), the mains supply details, the loads, the functions required (synchronizing, AMF, ATS), the installation location and any standard it must meet (DEWA, FEWA or marine class).
Related services
Work that often goes with this service
A generator panel works with the generators and the wider electrical system. These services go with it.
- 01
Electrical & Control Panels
Electrical control panels and switchgear for plants, buildings and vessels. - 02
Marine Switchboards & Control Panels
Ship switchboards and marine panels built to marine class standards. - 03
Generator Rewinding
Stator, rotor and exciter rewinding for all types of generators. - 04
Engine & Generator Overhauling
Marine diesel engines and generators overhauled. - All marine & industrial services
Request a quote
Need a synchronization panel built?
Send your generator and load details and we will come back with a design and a quote.
What to send us
- Number of generators and ratings (kVA, voltage)
- Mains supply details
- Loads and how they should be shared
- Functions: synchronization, AMF, ATS
- Installation location: site or vessel
- Required standard: DEWA, FEWA or marine class
